Siemens SIMATIC HMI MTP700 Unified Basic 7-Inch Touch Panel | 6AV2123-3GB32-0AW0

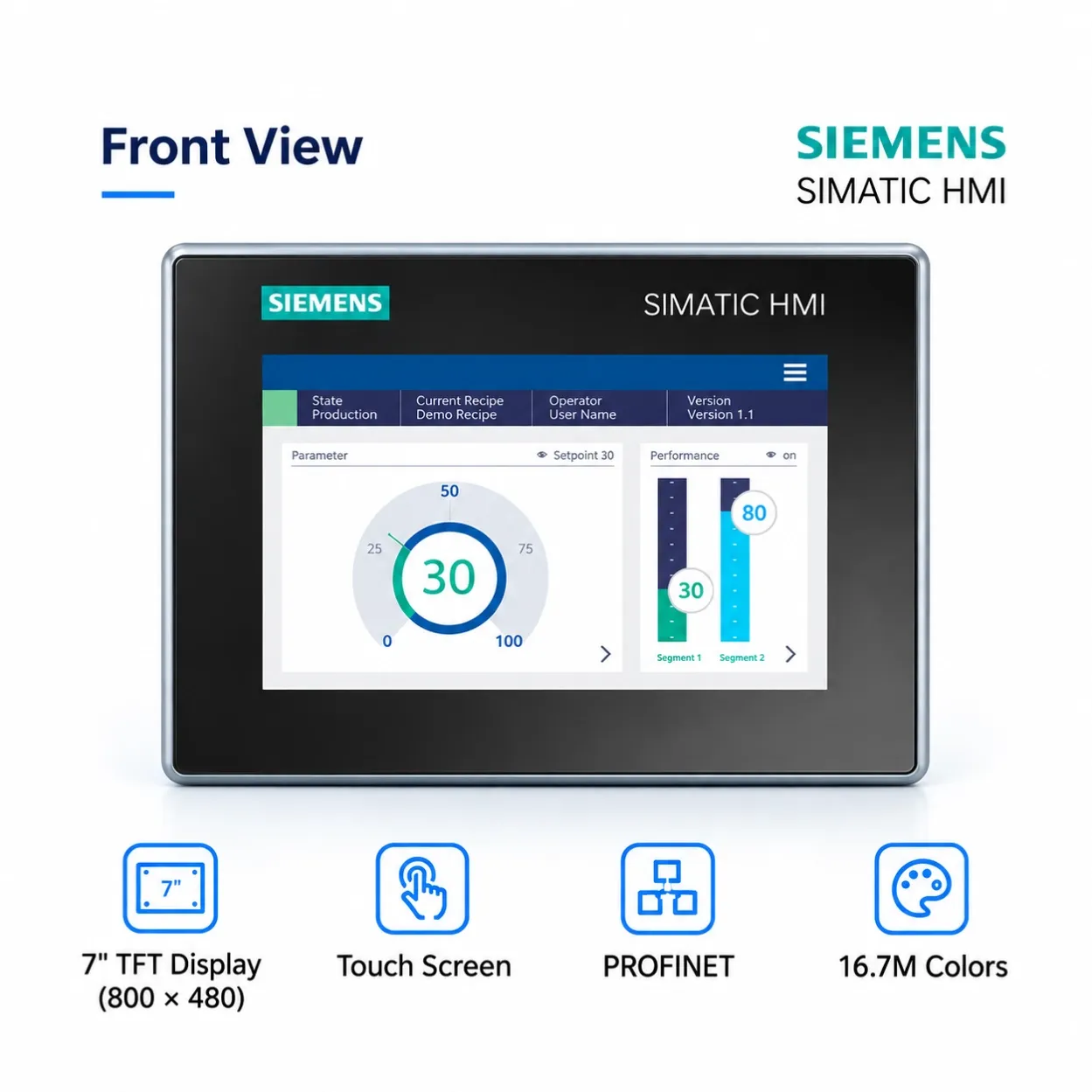

The Siemens SIMATIC HMI MTP700 Unified Basic (6AV2123-3GB32-0AW0) is a 7-inch multi-touch operator panel designed for industrial machine and process visualization. It features an 800 × 480 TFT display with up to 16.7 million colors, PROFINET connectivity through Gigabit Ethernet, and a 24 V DC power supply. The panel is configurable with WinCC Unified Basic from V18 Update 3 and provides IP65 protection at the front when properly installed.
Siemens 6AV2123-3GB32-0AW0 MTP700 Unified Basic HMI
Applications
Suitable for machine operator interfaces, production equipment visualization, PLC-based automation systems, control panels, and industrial HMI stations where a compact 7-inch PROFINET-enabled Siemens Unified Basic Panel is specified.
Specifications

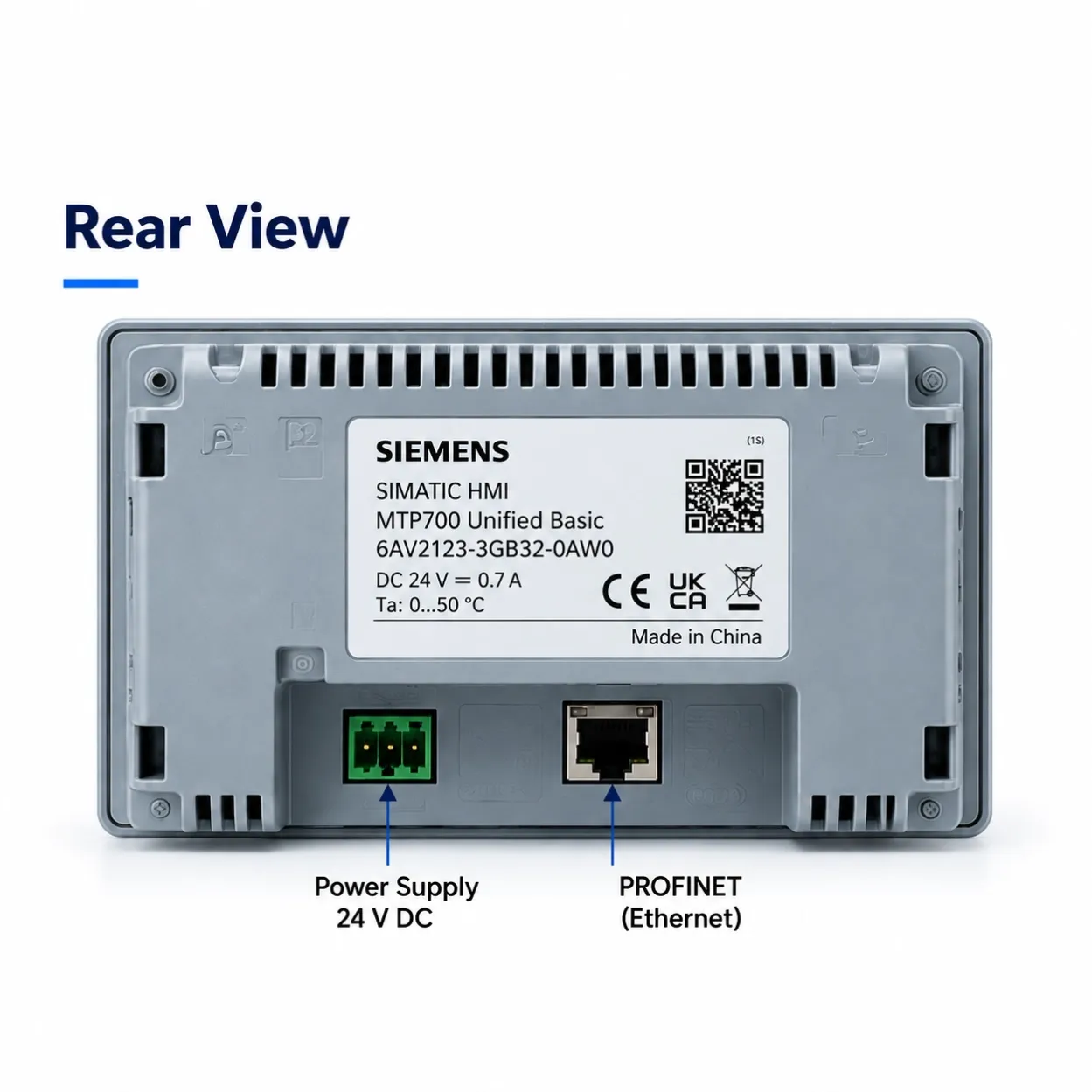

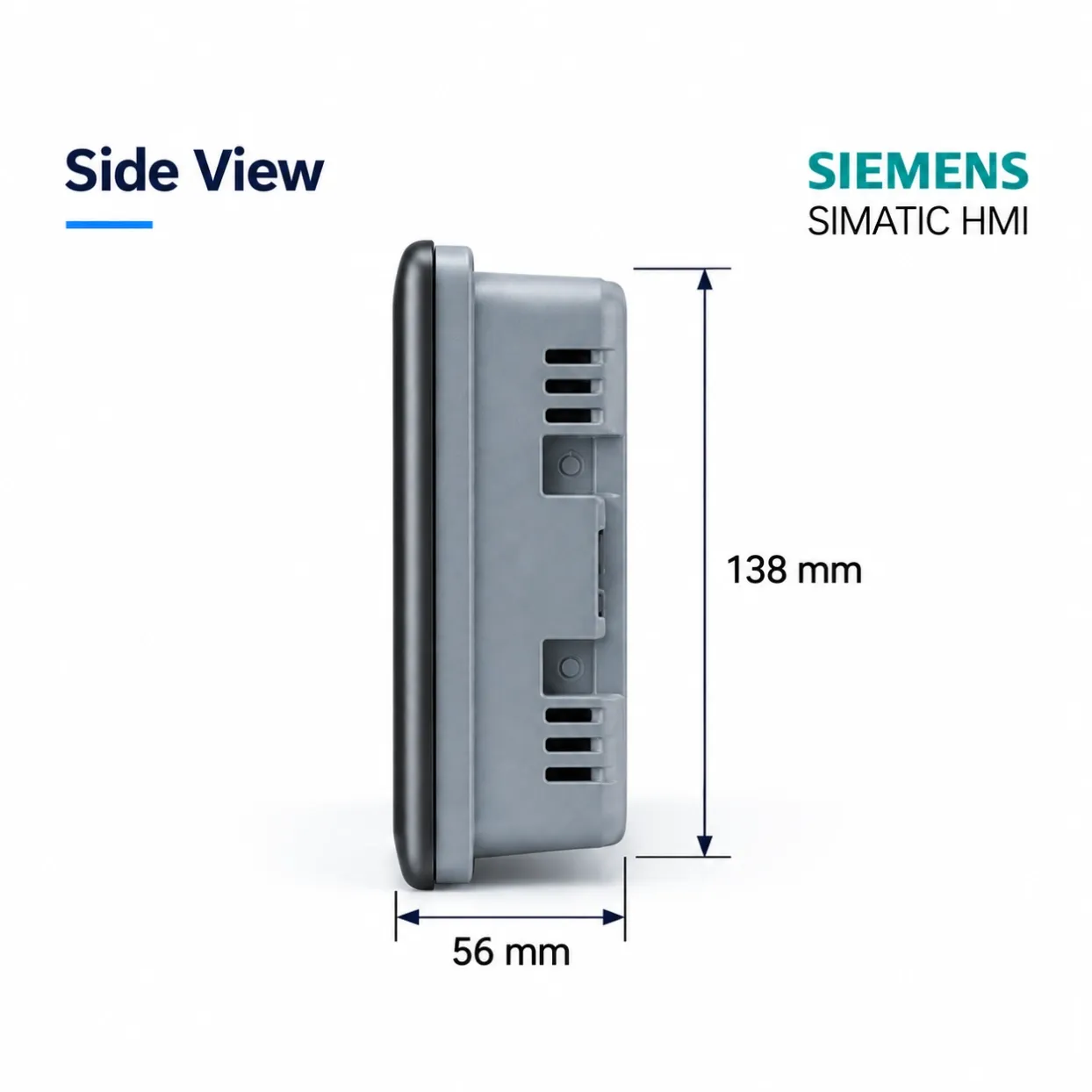

Specification | Details |
|---|---|
Manufacturer | Siemens |
Product Family | SIMATIC HMI Unified Basic Panels |
Model | MTP700 Unified Basic |
Article Number | 6AV2123-3GB32-0AW0 |
Display | 7.0" LCD TFT |
Active Display Area | 152.4 × 91.4 mm |
Resolution | 800 × 480 pixels |
Colors | Up to 16.7 million |
Touch Operation | Multi-touch |
Supply Voltage | 24 V DC, permissible range 19.2–28.8 V DC |
Typical Power Input | 8.2 W |
Ethernet | 1 × Gigabit Ethernet (IE/PN), RJ45 |
PROFINET | Supported |
USB | 2 × USB 2.0 |
Protection Rating | Front IP65 / Rear IP20 |
Front Dimensions | 214 × 158 mm |
Mounting Cutout | 197 × 141 mm |
Mounting Depth | 36 mm |
Weight | Approx. 0.85 kg |
Operating Temperature | 0 to 50 °C, vertical installation |
Configuration | WinCC Unified Basic, V18 Update 3 or later |
Siemens SIMATIC HMI MTP700 Unified Basic (6AV2123-3GB32-0AW0): 7-inch 800×480 multi-touch HMI with PROFINET and 24 V DC supply.
FAQ
Q1: What is Siemens 6AV2123-3GB32-0AW0?
It is the Siemens SIMATIC HMI MTP700 Unified Basic, a 7-inch multi-touch operator panel for industrial visualization and control applications.
Q2: What is the display resolution of the MTP700 Unified Basic?
The panel has a 7-inch TFT display with an 800 × 480 pixel resolution and supports up to 16.7 million colors.
Q3: Does the Siemens MTP700 support PROFINET?
Yes. It supports PROFINET communication through one Gigabit Ethernet IE/PN RJ45 interface.
Q4: What power supply does 6AV2123-3GB32-0AW0 require?
It uses a nominal 24 V DC supply. Siemens specifies an allowable DC input range of 19.2 to 28.8 V.
Q5: Which engineering software is used with the MTP700 Unified Basic?
The product is configurable with WinCC Unified Basic starting from V18 Update 3.

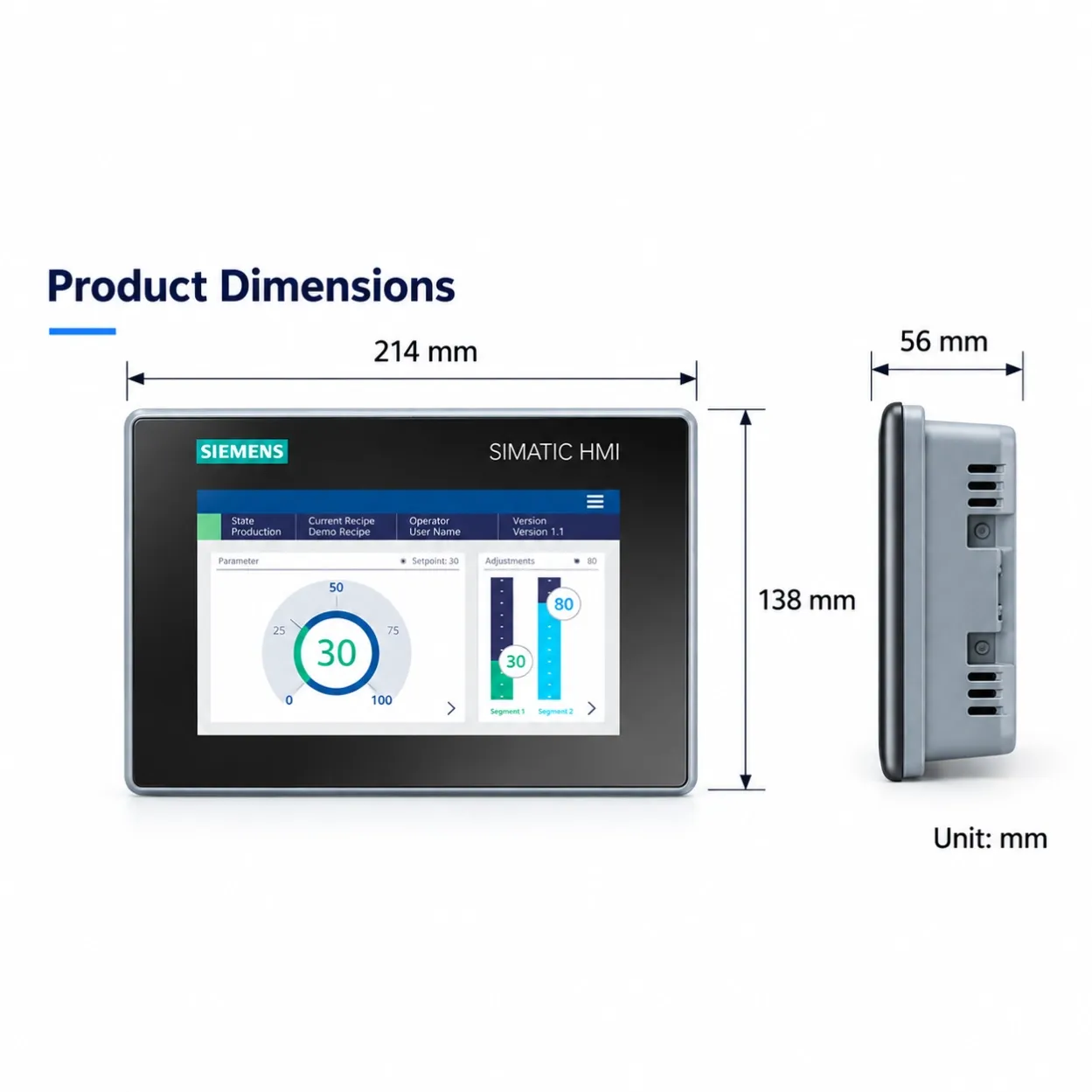

Q6: What are the installation dimensions?
The front dimensions are 214 × 158 mm, the required mounting cutout is 197 × 141 mm, and the specified mounting depth is 36 mm.
Q7: Is the MTP700 suitable for outdoor installation?
Siemens specifies the device for indoor use. The installed front is rated IP65, while the rear is IP20.
